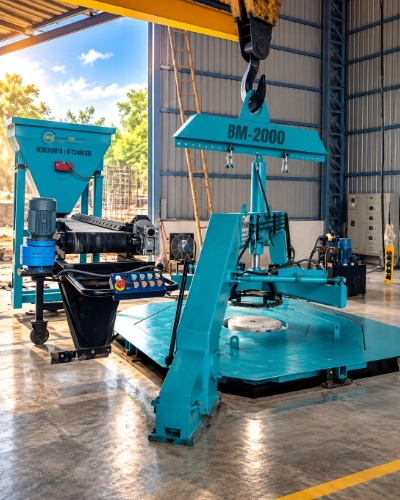

BM-2000 Vertical Vibration Casting Concrete Pipe Making Machine is one of the most advanced Concrete pipes making technology in the world, which integrate the technology of mechanical, electric, Hydraulic and Semi and Fully Automatics. The machine can produce products in BM-2000 size 300–2000 mm and a length of up to 2.5 meters.
BM-2000 is designed for vertical vibration casting of large-diameter concrete pipes, combining controlled feeding, high-frequency vibration, hydraulic operation and based control. It supports pipe production from 300 mm to 2000 mm diameter and lengths up to 2.5 m, subject to the selected mould and configuration.
Designed with a robust structural framework to provide the stability and durability required for larger-scale concrete pipe manufacturing operations.
The vertical forming configuration supports the production of larger concrete pipes while maintaining a controlled and organized manufacturing process.
The forming and vibration arrangement is engineered to promote consistent concrete compaction and uniform pipe formation throughout the production cycle.
Built to accommodate a broader range of concrete pipe production requirements, making the BM 2000 suitable for diverse infrastructure and construction applications.
The hydraulic and mechanical systems work together to support controlled machine movement and reliable operation during the pipe-forming process.
Engineered for regular industrial use, the BM 2000 provides a dependable machine platform for manufacturers seeking consistent concrete pipe production.

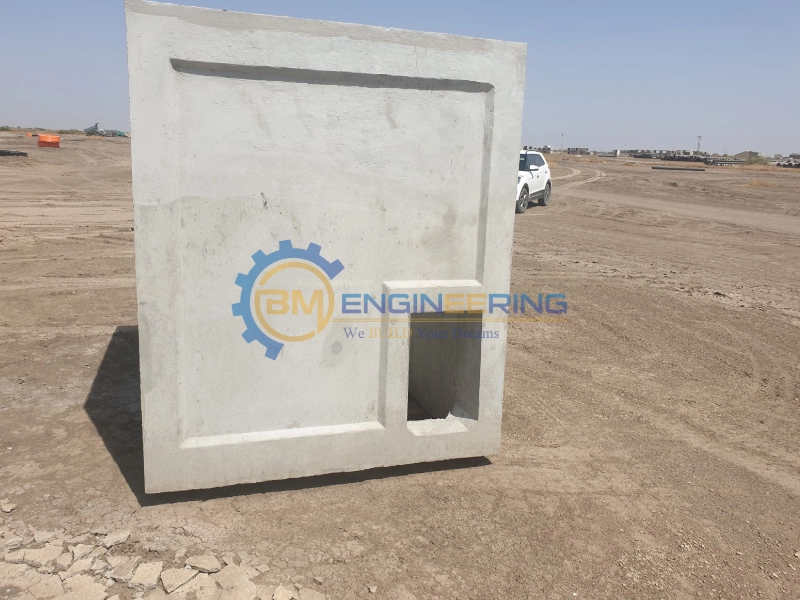

| Measurement | Round Pipe Length: 2500 mm | 8 Hours | Box Culvert Length: 2000 mm | 8 Hours |
|---|---|---|
| 300 mm | 70 / 8 hr | — |
| 450 mm | 60 / 8 hr | — |
| 600 mm | 55 / 8 hr | 50 / 8 hr |
| 800 mm | 50 / 8 hr | 40 / 8 hr |
| 900 mm | 40 / 8 hr | 35 / 8 hr |
| 1000 mm | 34 / 8 hr | 30 / 8 hr |
| 1200 mm | 30 / 8 hr | 25 / 8 hr |
| 1400 mm | 24 / 8 hr | 20 / 8 hr |
| 1600 mm | 18 / 8 hr | 18 / 8 hr |
| 1800 mm | 14 / 8 hr | 15 / 8 hr |

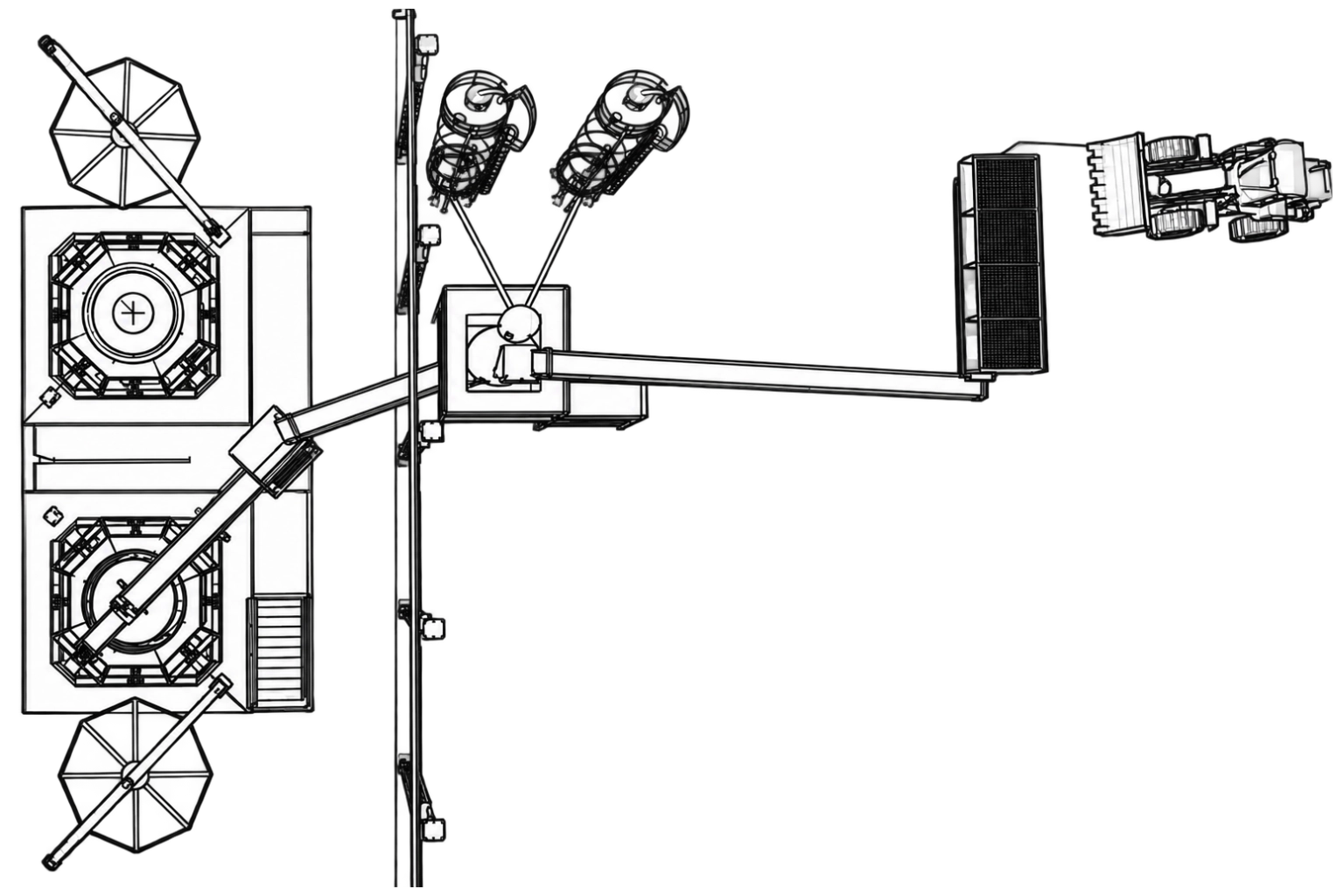

A practical plant arrangement designed around the BM 2000 Vertical Concrete Pipe Making Machine, supporting efficient material flow, production, handling and finished pipe storage.
The BM 2000 Vertical Concrete Pipe Making Machine combines robust structural components with precision forming, vibration, feeding, hydraulic and control systems to support reliable and consistent concrete pipe production.

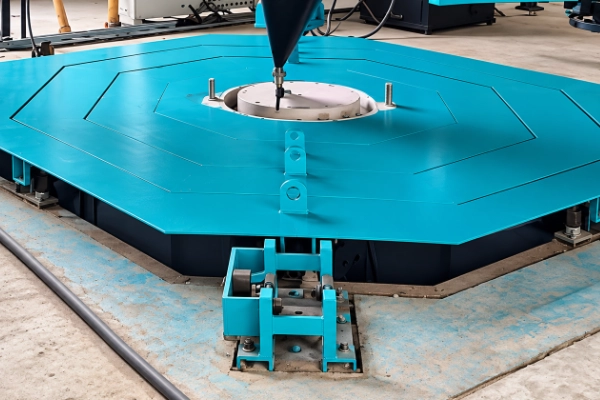

The robust structural frame forms the foundation of the BM 2000 machine, providing stability and support for the complete production assembly. It is designed to maintain structural rigidity during continuous concrete pipe manufacturing operations.

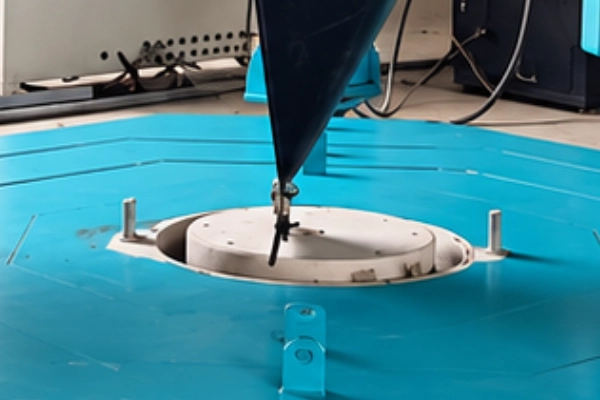

The electrically actuated vibration system provides controlled vibration during pipe formation, helping achieve effective concrete compaction. Adjustable vibration frequency supports consistent forming performance for different production requirements.

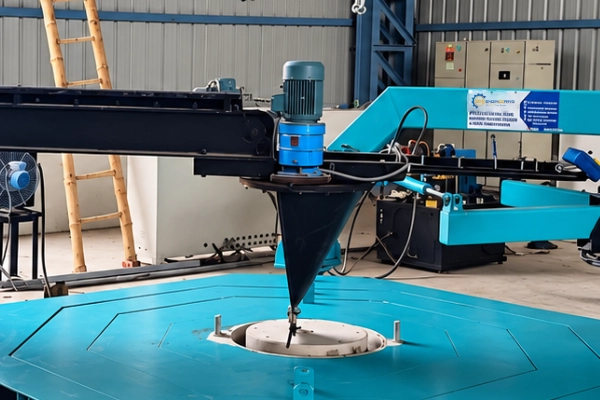

The concrete feeding arrangement incorporates a belt distributor to deliver and distribute concrete into the forming area. It supports smooth material flow and uniform concrete distribution during the pipe production cycle.

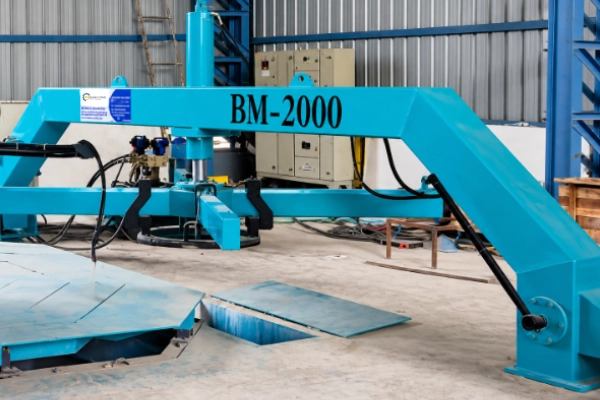

The integrated hydraulic system supports important machine functions, including conveyor movement, pressing and turning operations. It helps coordinate machine movements for smooth and reliable production performance.

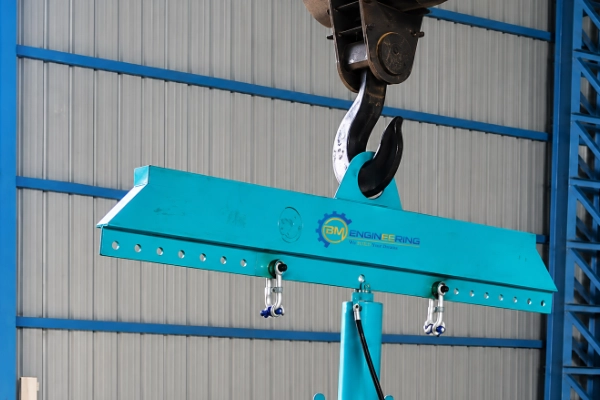

The mechanical lifting system is designed to accommodate different product lengths during the manufacturing process. It supports efficient product handling while maintaining a practical machine operating arrangement.

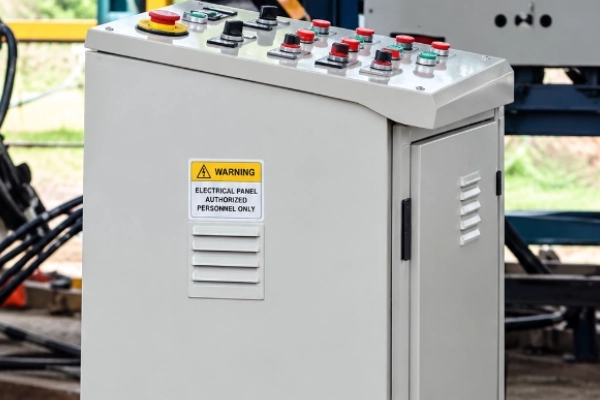

The centralized control panel with digital display provides a convenient interface for machine operation and monitoring. It allows operators to manage important machine functions through a centralized control system.

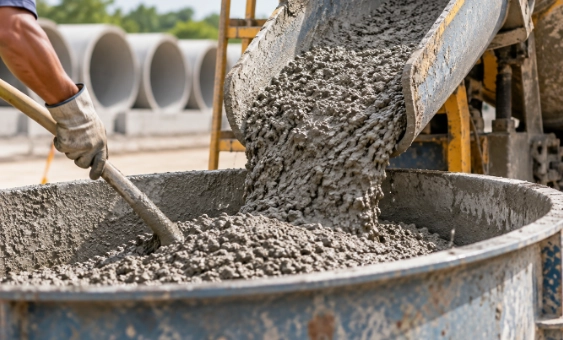

Prepare the required concrete mix according to the selected pipe specification and production requirement, maintaining a suitable consistency for vertical pipe forming.

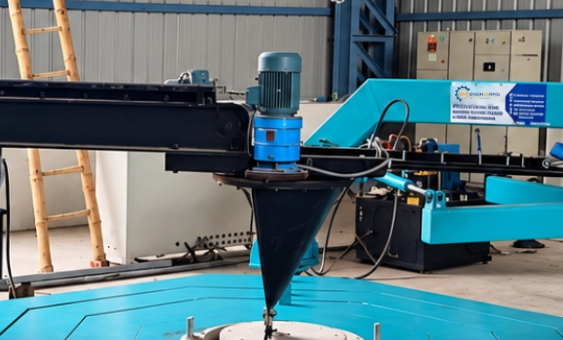

Feed the prepared concrete into the mould through the machine feeding arrangement while the forming system builds the pipe profile.

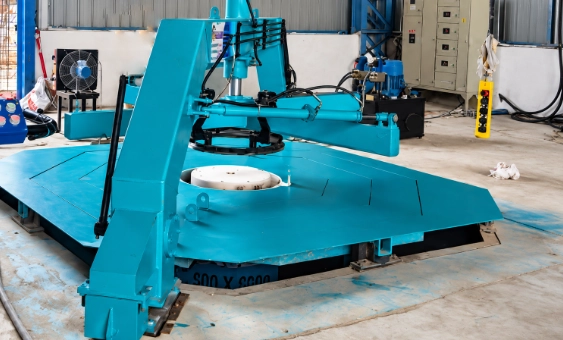

Controlled high-frequency vibration compacts the concrete around the core, helping achieve dense, uniform and dimensionally consistent pipe formation.

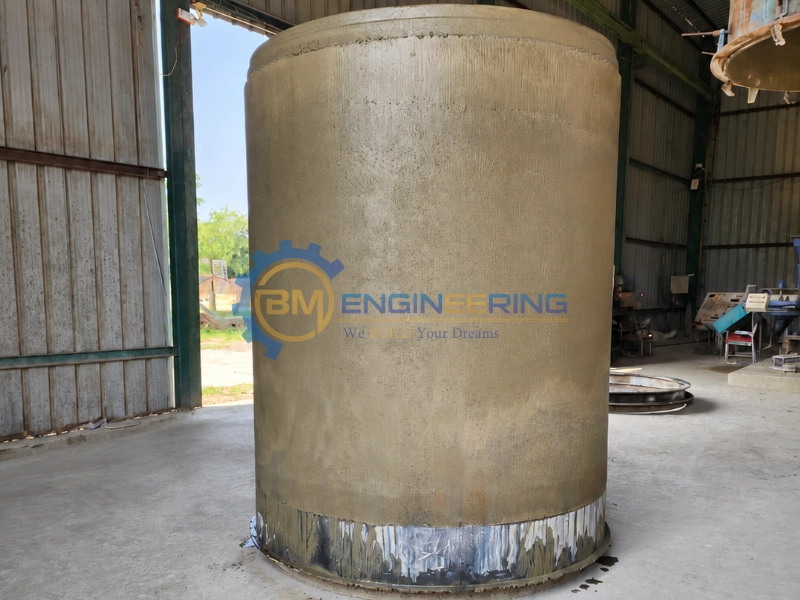

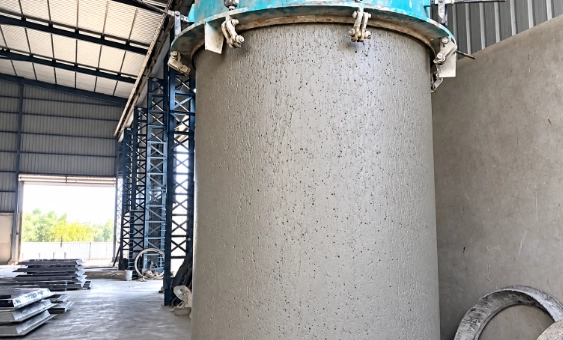

Release the mould after forming and move the newly produced pipe carefully to the designated handling and curing area.
BM-2000 is built for manufacturers looking for a controlled and repeatable approach to concrete pipe production. Its vertical vibration casting arrangement, integrated hydraulic functions and centralized control help organize the forming cycle while supporting consistent product quality.
Minimum Pipe Diameter (mm)
Maximum Pipe Length (m)
Maximum Pipe Diameter (mm)
Main production area for vertical concrete pipe forming and controlled compaction.
